| Category |

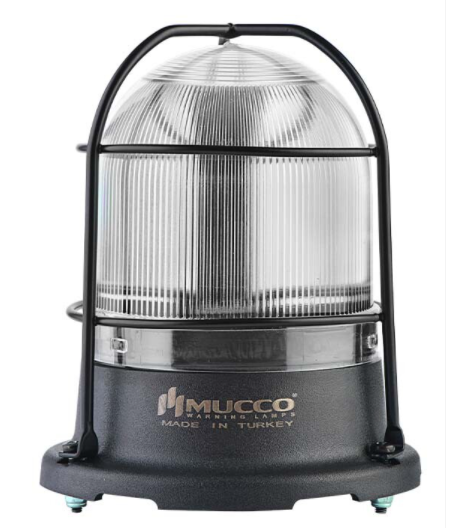

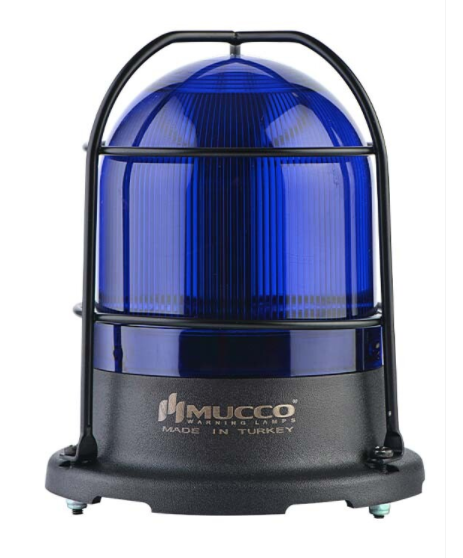

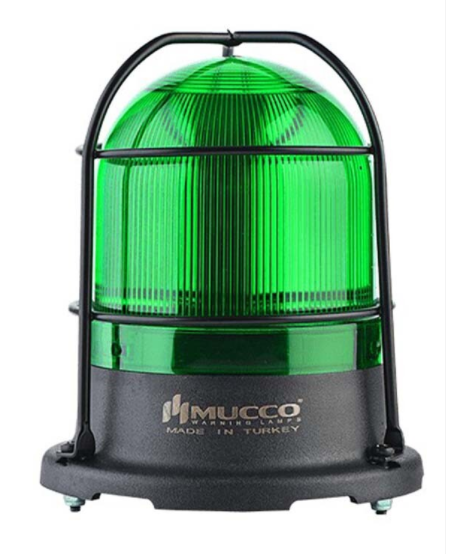

Signal Beacon |
|
| Current |
SNT-115/125 series: |
|
|
12-24V AC/DC |
447-531mA ±10% |
|
85-260V AC/DC |
41-58mA ±10% 50-60 Hz |
|
SNT-110/120 series: |
|
|
12-24V AC/DC |
140-144mA ±10% |
|
85-260V AC/DC |
320-240mA ±10% 50-60 Hz |
| Body material |
ABS (Body) + Polycarbonate (Lens) |
|
| Lens colors |
Red, Green, Yellow, Blue, White |
|
| Lens diameter |
ø100mm |
|
| Light source |
SNT-115/125 series: POWER LED |
SNT-110/120 series: SMD LED |
| Light mode |
Steady, Flashing, Strobe, Rotary |
|
| Input response time |
on/off: 10ms max. |
|
| Tone |
10 tone (button control) |
|
| Alarm |
88~112dB at 1m (3.3ft) |
|
| Connection |
Wire |
|
| Mounting type |
Surface, Wall |
|
| Operation conditions |
-20°C to +50°C (-4°F to +122°F) |
|
| Expected life |
Min. 50,000 hrs |
|
| Degree of protection |
IP65 |
|
| Protection |
Water, Dust, Heat, and UV Ray Resistant |
|
| Certificates & Quality Doc. |
ISO-9001, CE, RoSH2 and EAC |
