| Operating principle |

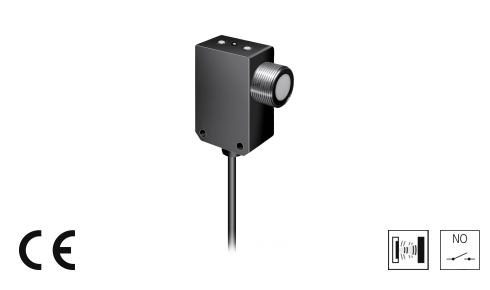

Ultrasonic sensor |
| Evaluation |
digital |
| Size |
46 x 30 x 18 mm (Dimensions) |
| Design |
cuboid design |
| Service voltage |
12 … 28 V DC |
| Internal power consumption |
55 mA |
| Operating distance |
120 … 500 mm |
| Switching output |
pnp, 100 mA, NO |
| Switching hysteresis |
10 % |
| Operating frequency |
175.000 Hz |
| Switching frequency |
2 Hz |
| Response-/release time |
< 10 ms / 0,4 … 8 s adjustable |
| Reproducibility |
< 1 % / Sn max. |
| Ambient temperature |
-20 … +50 °C |
| Temperature drift |
-0,1 %/K (switching output), -0,17 %/K (air path) |
| Insulation voltage endurance |
500 V |
| Protection class |
IP 67 |
| Casing material |
stainless steel, plastics V2A (1.4301 / AISI 304), (Polyamide – PA) |
| Connection |
Cable, 2 m |
