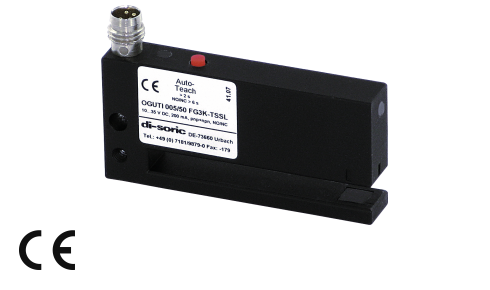

OGUTS 005/50 FG3K-TSSL ETİKET SENSÖRÜ
Operating principle | Optical |
Evaluation | digital |
Design | fork |
Fork opening | 5 mm |
Branch length | 50 mm |
Slot width | 5,0 mm |
Characteristics | Integrated memory locations |
Emitted light | Infrared, 880 nm, clocked |
Service voltage | 10 … 35 V DC |
Internal power consumption | < 35 mA |
Sensitivity adjustment | Teach key + remote teach |
Switching output | Push pull, 200 mA, NO/NC, switchable |
Switching hysteresis | < 0,15 mm |
Label interspace | > 2 mm |
Voltage drop | 2,0 V |
Switching frequency | 3.000 Hz |
Ambient temperature | -10 … +60 °C |
Ambient light immunity | 100 kLx |
Insulation voltage endurance | 500 V |
Protection class | IP 67 |
Protection degree | III, operation on protective low voltage |
Casing material | Die-cast zinc black lacquered finish |
Connection | Connector, M8, 4-poled |
Connecting cable | TK … /4 |
