| Operating principle |
Optical |
| Evaluation |
digital |
| Size |
70 x 80 x 10 mm (Dimensions) |

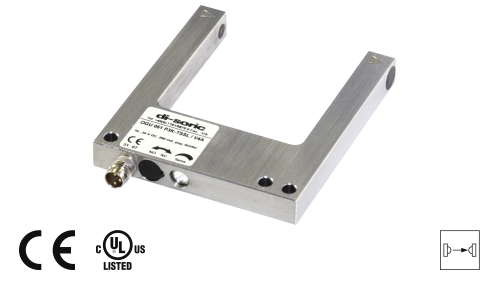

| Design |
fork |
| Fork opening |
50 mm |
| Branch length |
55 mm |
| Emitted light |
Red, 660 nm, clocked |
| Service voltage |
10 … 35 V DC (Supply Class 2) |
| Internal power consumption |
< 30 mA |
| Resolution |
Ø 0,5 mm |
| Sensitivity adjustment |
potentiometer |
| Switching output |
pnp, 200 mA, NO/NC, switchable |
| Switching hysteresis |
< 0,25 mm |
| Voltage drop |
2,8 V |
| Switching frequency |
4.000 Hz |
| Reproducibility |
0,04 mm |
| Ambient temperature |
-10 … +60 °C |
| Ambient light immunity |
40 kLx |
| Insulation voltage endurance |
500 V |
| Protection class |
IP 67 |
| Protection degree |
III, operation on protective low voltage |
| Casing material |
stainless steel V4A, (1.4404 / AISI 316L – 1.4571 / AISI 316Ti) |
| Connection |
Connector, M8, 3-poled |
| Connecting cable |
TK … |
