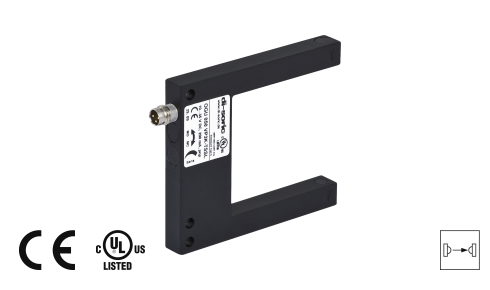

OGU 050 VP3K-TSSL ÇATAL SENSÖR

Operating principle Optical
Evaluation digital
Size 70 x 80 x 10 mm (Dimensions)
Design fork
Fork opening 50 mm
Branch length 55 mm
Emitted light Infrared, clocked
Service voltage 10 … 35 V DC (Supply Class 2)
Internal power consumption < 30 mA
Resolution Ø 0,5 mm
Sensitivity adjustment potentiometer in front
Switching output pnp, 200 mA, NO/NC, switchable
Switching hysteresis < 0,25 mm
Voltage drop 2,8 V
Switching frequency 4.000 Hz
Reproducibility 0,04 mm
Ambient temperature -10 … +60 °C
Ambient light immunity 20 kLx
Insulation voltage endurance 500 V
Protection class IP 67
Protection degree III, operation on protective low voltage
Casing material Die-cast zinc black lacquered finish
Connection Connector, M8, 3-poled
Connecting cable TK …
